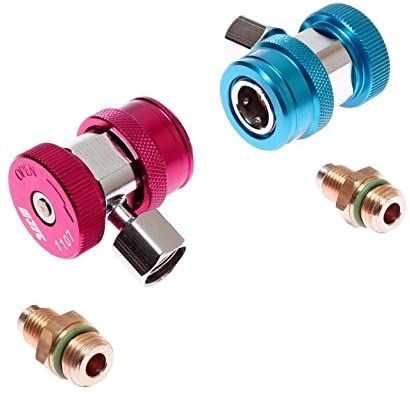

Optimize your automotive air conditioning fleet services and execute precise pressure calibrations with ultimate workshop safety using the heavy-duty JTC Professional Low-Side R134a Quick Coupler. Expertly engineered to meet strict HVAC maintenance parameters by Taiwan's premier tool specialist JTC, this industrial-grade adapter connects seamlessly to the low-pressure (suction) line port of vehicle air conditioning systems. Machined from robust, premium anodized aluminum housing finished in standard technical blue, it incorporates an internal spring-loaded quick-detent sleeve that snaps positively onto the vehicle's service port. The tool integrates a top-mounted knurled manual control valve, empowering technicians to depress and actuate the internal Schrader valve smoothly without venting volatile refrigerant mass. Accompanied by a solid brass male adapter fitting featuring a high-grade green sealing O-ring, this setup guarantees fluid, zero-leak link-ups to standard manifold gauge hose assemblies inside the professional garage.
Product Specifications:
-
Brand: JTC.
-
Product Type: Low-side quick coupler for automotive air conditioning.
-
Country of Origin: Taiwan.
-
Color-Coded Classification: Technical Blue (Designated low-pressure suction side line tool).
-
Included Accessories: One piece blue quick coupler paired with a detachable threaded brass conversion nipple and sealing element.
Product Benefits:
-
Positive-Lock Zero-Venting Interface: Advanced sleeve collar mechanism locks firmly over valve ports, preventing trace chemical blowback during attachment cycles efficiently.
-
Hardened Taiwanese Metallic Chassis: Industrial-grade composite steel and brass core architecture engineered to withstand high repeated friction strain cleanly.
-
Manual Safety Actuation Knob: Ergonomic top dial isolates internal core pressure safely, preventing painful frostbite hazards during manual field connect operations.
-
Leak-Proof Brass Conversion Nipple: High-tolerance threaded brass coupling secures a flush connection to service lines, eliminating pressure drop variations.
-
Tactile Ribbed Grip Profile: Diamond-patterned structural outer knurling delivers non-slip handling, resisting workshop oils and grease residues effectively.
Directions for Correct Application:
-
Rotate the top knurled knob of the blue JTC coupler counter-clockwise to ensure the internal depressor pin is fully retracted before deployment.
-
Pull back the outer spring-loaded sleeve ring, push the coupler squarely down over the vehicle's low-side service valve stem, and release the sleeve to lock it.
-
Thread your manifold charging gauge hose onto the back brass fitting securely; turn the top knob clockwise to drive the pin down and initiate air conditioning extraction or filling safely.
Suitable for:
Routine pressure diagnostic monitoring, system vacuuming, and fresh R134a refrigerant volume replacement across modern passenger vehicles, light trucks, and utility fleets.
Important Note:
Always keep the internal coupler port clear of fine grit and atmospheric debris. Store the component in a dry tool cabinet drawer to protect internal rubber seal integrity and preserve micro-scale seating accuracy for future repair cycles.
Achieve perfect under-hood diagnostic accuracy and enjoy persistent Taiwanese engineering durability! Buy JTC Low Side Quick Coupler today from Carboost store.
